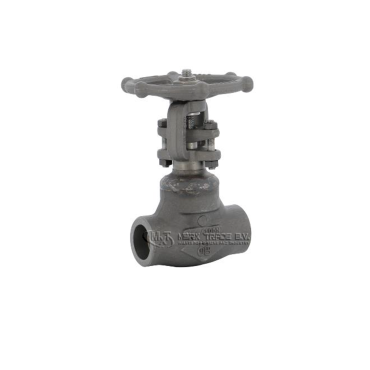

Gate valve thread NPT carbon steel TRIM.16 800#

Model: NPT TRIM 16 Material body: Steel ASTM A105N
Connection: Female thread NPT Material wedge: AISI 316 + Stellite GR.6
Pressure: 136 bars see PDF Material seat: AISI 316 + Stellite GR.6
Temperature: - 29°C to + 425°C  see data sheet Operation: Hand wheel
Design: To ISO 15761 and API 602 8th
Brand: OMB
2 side flow direction
Use: Petroleum industry, steam, heavy duty

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-1150022000
Body material Steel ASTM A105N
Disc / Ball / Wedge AISI 316 + Stellite GR.6
Seat AISI 316 + Stellite GR.6
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-1150022010 Gate valve thread NPT steel TRIM.16 800.LBS -DN10-3/8" 3/8" 80
€89.71
- +
MXT-1150022015 Gate valve thread NPT steel TRIM.16 800.LBS -DN15-1/2" 1/2" 80
€89.70
- +
MXT-1150022020 Gate valve thread NPT steel TRIM.16 800.LBS -DN20-3/4" 3/4" 90
€96.95
- +
MXT-1150022025 Gate valve thread NPT steel TRIM.16 800.LBS -DN25-1" 1" 110
€158.73
- +
MXT-1150022040 Gate valve thread NPT steel TRIM.16 800.LBS -DN40-1.1/2" 1.1/2" 127
€309.75
- +
MXT-1150022050 Gate valve thread NPT steel TRIM.16 800.LBS -DN50-2" 2" 127
€386.78
- +
